Electric Plated Hard Gold PCB Fingers
Since 2002, PCBfabrication.com has provided PCB fingers with 3 selections, they are HASL PCB fingers, Electroless Nickel/Immersion chemical deposition soft and thin Gold PCB fingers, and Electric Plated Hard Gold PCB Fingers.
Our electric plated hard gold PCB finger technology is mature, and has been recognized trusted by our return and new customers.
Electric plated hard gold fingers are mainly used in for the PCB applications that require multiple insertions and removals. Compared with Electroless Nickel/Immersion Gold or HASL PCB fingers, Electric plated hard gold fingers have the advantages of high hardness, wear resistance, and durable, but the cost is very higher.
Our gold finger plating capability (thickness) is from 2mil to 50mil.
The process of electroplating gold fingers is more complicated than Electroless Nickel/Immersion Gold or HASL PCB fingers. The key processes are as follows:
Build electroplating leads in production films, cut Copper clad laminate boards, drill holes, copper-pattern transfer, electroplating copper and tin, etching, solder mask, electric plate gold fingers, routing, elect test, QC exam.
If you want to order PCBs with electric plated hard gold fingers, please send your Gerber files and requirements to PCB@PCBfabrication.com, we will provide you quotes within 24 hours.

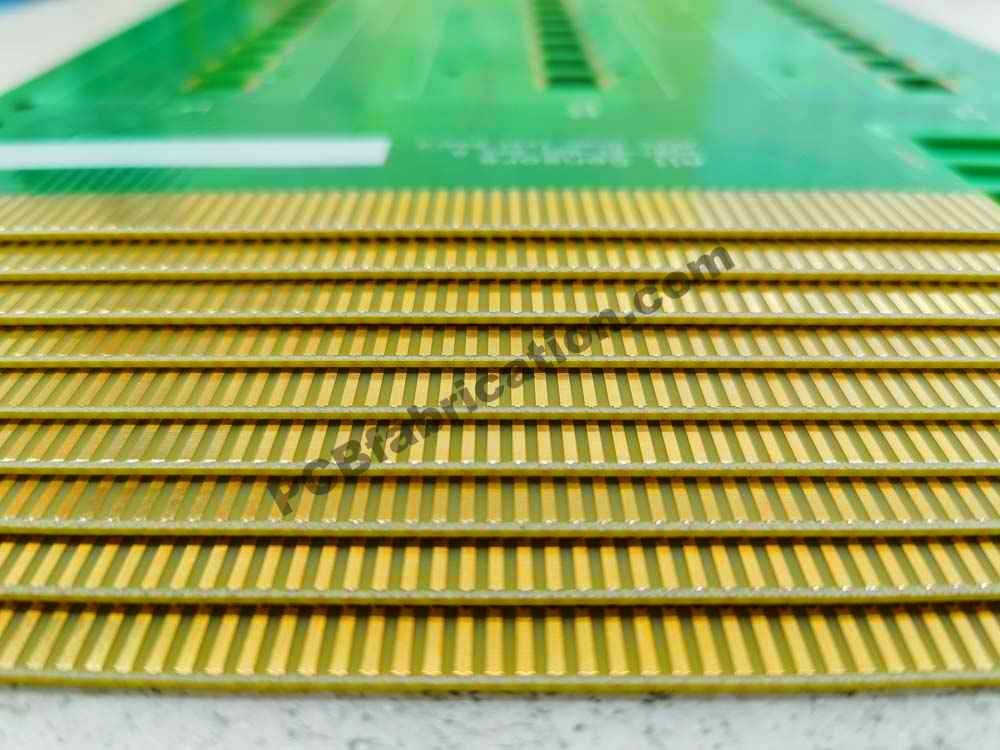

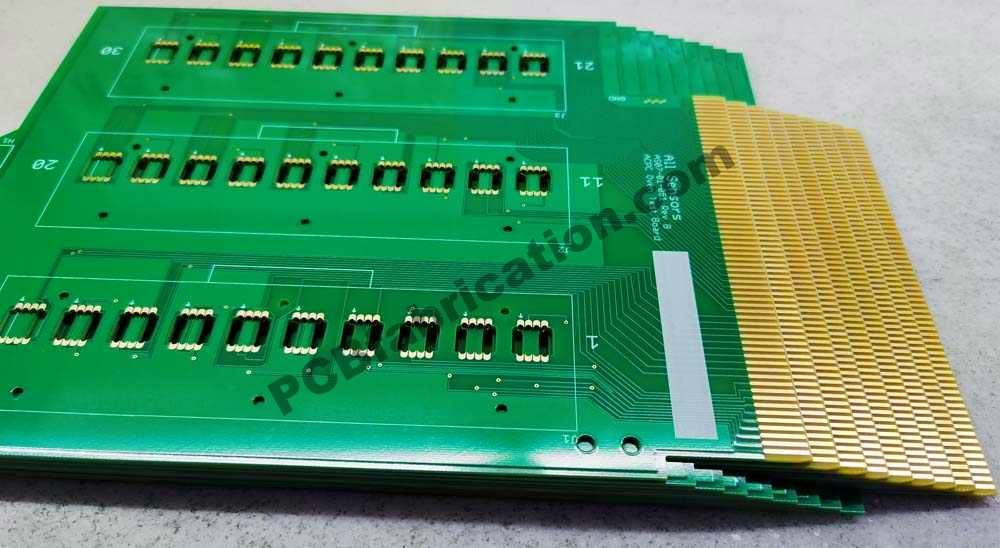

The following are the product photos of the electroplated gold finger PCBs made by our company.
