What impedance values are common in PCB design?

Common values include 50 ohm single-ended impedance and 90 ohm or 100 ohm differential impedance, depending on the signal standard and design requirement.

What information should be provided for controlled impedance PCB fabrication?

Customers should provide the target impedance value, single-ended or differential requirement, layer information, PCB material if specified, copper thickness, requested stackup if available, tolerance if required, and any special fabrication or test notes.

Controlled Impedance PCB

Q: What is controlled impedance in PCB?

Controlled impedance means the PCB trace geometry and layer structure are designed and fabricated so that the trace reaches a specified impedance value, such as 50 ohm single-ended or 100 ohm differential.

Q: When is controlled impedance required?

Controlled impedance is commonly required for high-speed digital signals, differential pairs, RF circuits, and communication interfaces such as USB, Ethernet, HDMI, LVDS, and similar designs.

Q: Can PCB Fabrication review the controlled impedance requirement?

Yes. If clear impedance requirements and fabrication notes are provided, the engineering team can review the requirement and confirm whether additional stackup or manufacturing details are needed.

Controlled impedance PCB is used to help maintain signal integrity in high-speed and high-frequency designs. Clear impedance targets, stackup details, and fabrication notes are important to help ensure the board is manufactured correctly.

What Is Controlled Impedance?

Controlled impedance means the trace width, spacing, copper thickness, dielectric thickness, and PCB layer structure are designed so that the electrical impedance of the trace matches a target value. This helps reduce signal reflection, mismatch, and signal loss.

Single-ended impedance: one trace referenced to a plane, such as 50Ω.
Differential impedance: two traces routed as a pair, such as 90Ω or 100Ω.
Stackup: material and layer arrangement strongly affect impedance results.
Tolerance: some designs require impedance tolerance such as ±10%.

When Is Controlled Impedance Needed?

Application	Typical Requirement
High-speed digital signals	Reduce reflection, distortion, and timing problems.
Differential pair routing	Maintain target differential impedance such as 90Ω or 100Ω.
RF / communication circuits	Help preserve signal quality and reduce mismatch in the signal path.
Standard interfaces	USB, Ethernet, HDMI, LVDS, and similar interfaces may require impedance control.

Important: If controlled impedance is required, the target value should be clearly stated in your fabrication note or engineering document.

What Information Should You Provide?

Target impedance value, such as 50Ω, 90Ω, or 100Ω
Single-ended or differential requirement
Impedance layer information
PCB material requirement, if specified
Copper thickness or copper weight
Requested stackup, if already defined
Impedance tolerance, if required
Special notes about test coupon or verification

If your engineer or simulator has already defined the stackup, it is best to include that information in the fabrication drawing or manufacturing notes.

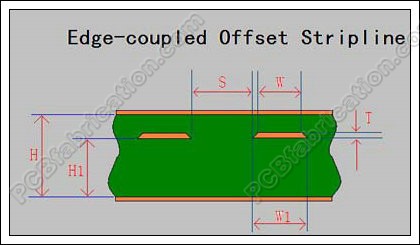

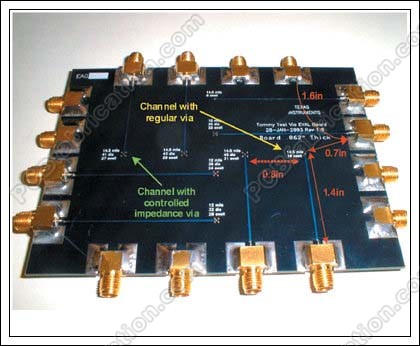

Example of a PCB related to controlled impedance fabrication.

Impedance control is usually associated with stackup definition and fabrication notes.

Frequently Asked Questions

What is controlled impedance in PCB?

Controlled impedance means the PCB trace and layer structure are designed and manufactured so the electrical impedance matches a specified target value.

When is controlled impedance required?

It is commonly required for high-speed digital circuits, RF designs, communication boards, and differential pair routing.

What impedance values are common?

Common values include 50Ω single-ended impedance and 90Ω or 100Ω differential impedance, depending on the application.

What should I provide when ordering a controlled impedance PCB?

You should provide the target impedance, signal type, layer information, stackup if available, copper thickness, tolerance if required, and any special fabrication notes.

Can your engineering team review the requirement?

Yes. If the documentation is clear, the engineering team can review the requirement and help confirm the manufacturing details.

Engineering Note

Controlled impedance PCB fabrication depends on both PCB design data and manufacturing capability. If your design is sensitive to impedance performance, please include clear notes with your order so the requirement can be reviewed before production.
