High Quality & Low cost PCB Fabrication Services

PCB Fabrication Company is a professional Printed Circuit Board (PCB) provider located in Washington State, USA. For all PCB orders, my company experienced engineers will review your quote request or design files to ensure you will receive the best quality PCBs timely with the most competitive price.

Proven PCB Source for customers from Fortune 500 companies to one-person start up.
PCB Fabrication Company has successfully completed 12000+ PCB Orders with satisfied, repeat customers online since 2007.
Trusted by thousands of PCB design and engineering companies.
All our fabricated prototype and mass PCBs are electrical tested, qualified to UL standards and met the Printed Circuit Board industry latest standards of IPC-6012B class I, class II or class III.
$30 flat shipping fee always.

PCB Quote Engines

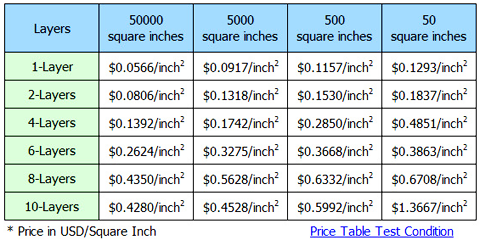

There are 3 type fees to consist a PCB fabrication price in total, they are

1st Time NRE Fee + PCB Fabrication Fee + Shipping Fee
1st Time NRE Fee is depend on each PCB area, or each panel area if you need to deliver your PCBs in panels. PCB Fabrication Fee is depend on the PCB total area. My company takes flat shipping policy, $30 for each PCB order, doesn't matter how big or small of your order is.

Quote Quick Turn PCB

Prototype PCB Layer: 1 to 4; Max Area: 1 Square Meters (1550 Square inches); Special: 2 to 5 expedite Day Lead Time; Best For: Getting Quick Turn Prototype PCBs

Quote PCB

PCB Layers: 1 to 10; Max Area: 10 Square Meters (15500 Square inches); Special: Many Special Manufacturing Processes Available; Lead Time: 2 to 13 Days. Best For: Low Cost Prototype PCBs to Mass Orders.

Quote PCB Stencil

We Provide All PCB Frame, Frameless and Customized Stainless Stencils. Lead Time: 2 Days.

Quote Flex PCB

Flex PCB Layers: 1 to 4; Max Area: 2 Square Meters (3100 Square inches); All Common Base Materials are Available; Lead Time: 5 to 15 Days.

Samples of Printed Circuit Boards We Fabricated

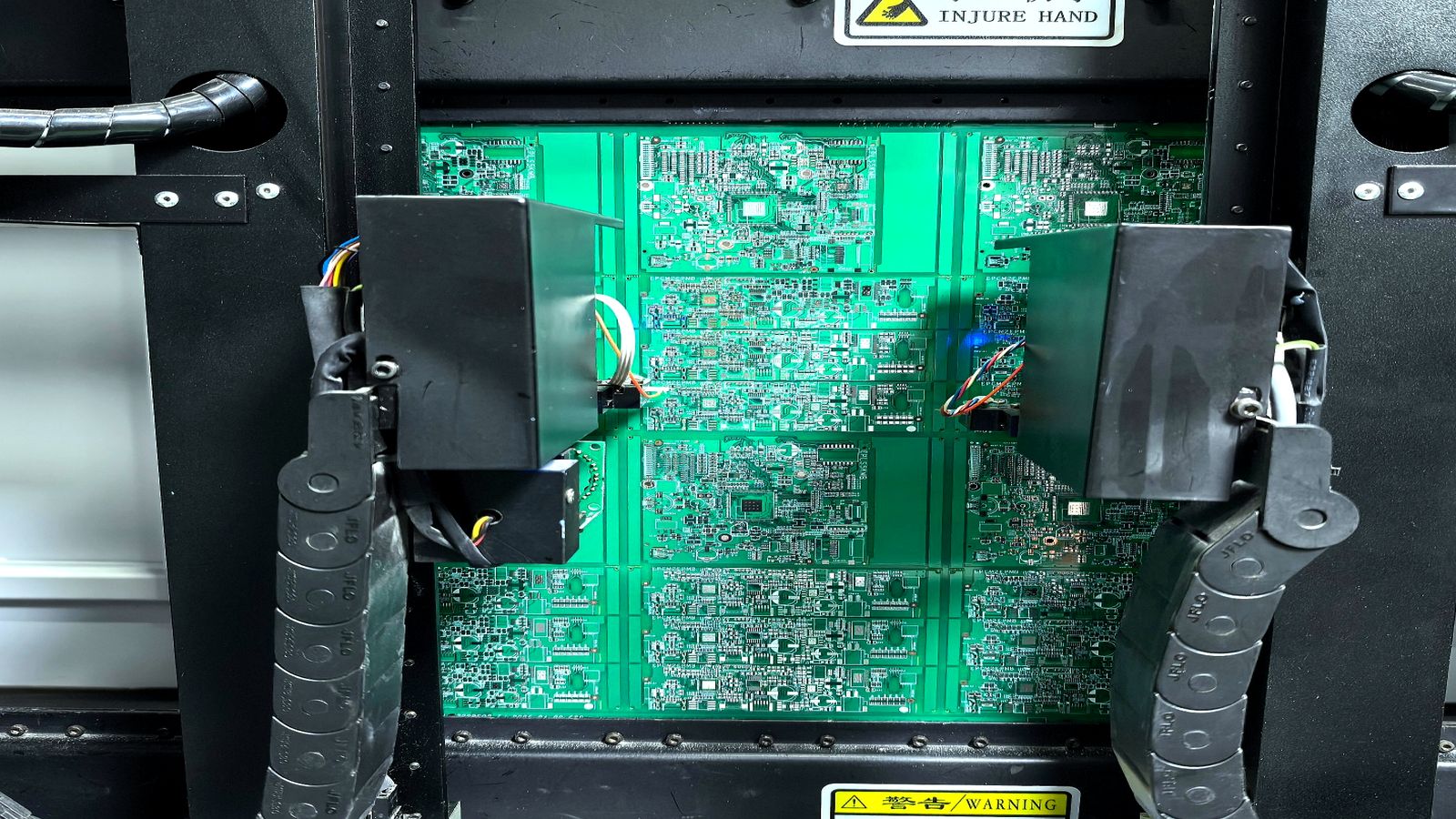

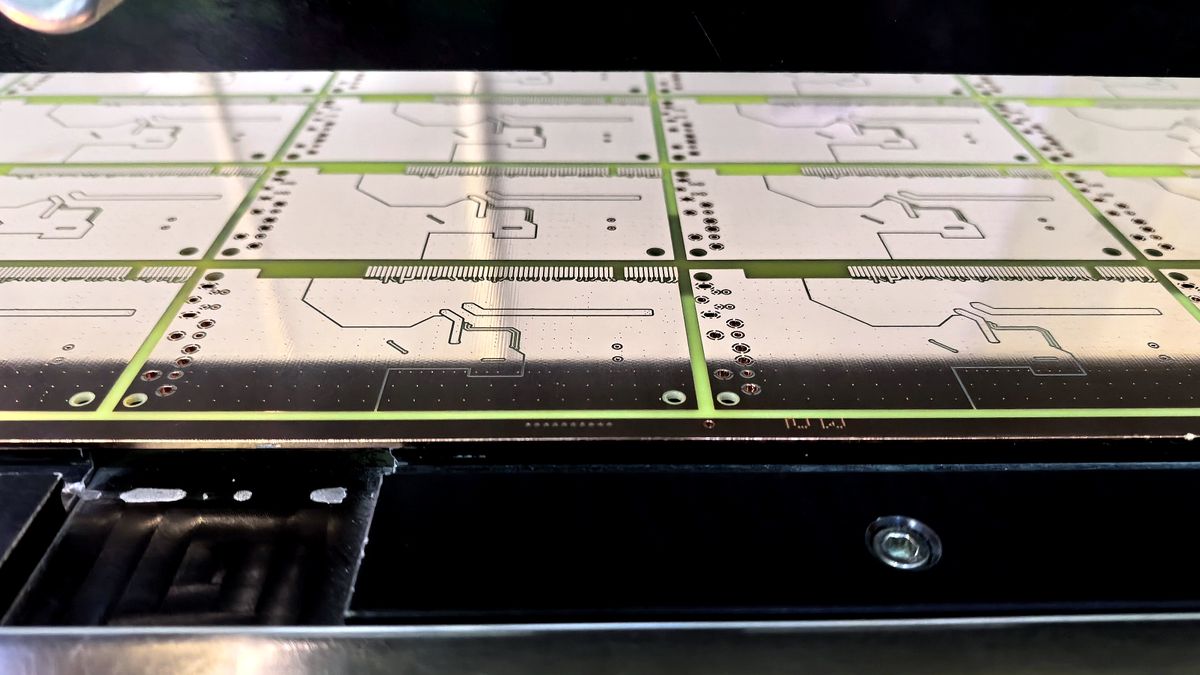

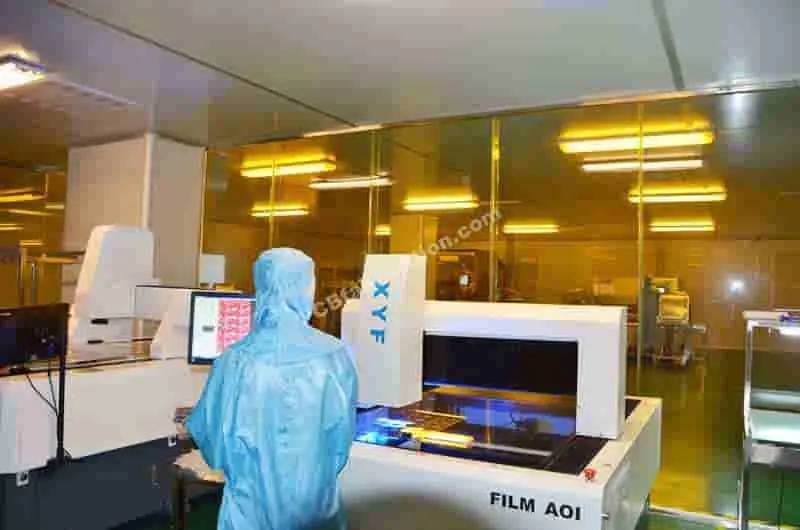

Strictly according IPC 6012 Class II standard process request, below photos are the circuit boards we fabricated from single copper layer PCB to multi-layer layer PCB. All PCB must be passed electrical Flying Probe or Universal Grid test, Automated Optical Inspection (AOI), and experienced technician exam before our QC department releases PCBs to final clean and package to ship to the customer immediately.

6-layer, 1 oz copper, 79 mil finish, Tg 160C, RoHS Electroless Nickel/Immersion Gold, 2 side green solder mask with white silkscreen

6-layer, 1 oz copper, 79 mil finish, Tg 180C, RoHS Electroless Nickel/Immersion Gold, Castellated Hole, 2 side green solder mask with white silkscreen.

2-layers, 2 oz copper, 62 mil finish, Tg 160C, Hot Air Solder Leveling, 2 side green solder mask with white silkscreen.

4-layers, RoHS Electroless Nickel/Immersion Gold

4-layer, 1 oz copper, 47 mil finish, Tg 140C, RoHS Electroless Nickel/Immersion Gold, 2 side red solder mask with white silkscreen.

8-layer, 3 oz copper, 62 mil finish, Tg 140C, Immersion Silver, 2 side green solder mask with white silkscreen.

2-layers, 1 oz copper, 62 mil finish, Tg 140C, Hot Air Solder Leveling, 2 side blue solder mask with white silkscreen.
